2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Name: 2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: FUYSFP2010-28
Price: 15 USD
Availability: InStock

सभी उत्पाद

Centronics कनेक्टर
(198)

दीन 41612 कनेक्टर
(170)

SCSI कनेक्टर
(67)

50 पिन Centronics कनेक्टर
(57)

36 पिन Centronics कनेक्टर
(20)

64 पिन क्रॉनिक कनेक्टर
(28)

V.35 राउटर कनेक्टर
(11)

डी-उप कनेक्टर
(66)

आईडीसी केबल विधानसभा
(14)

IDC समेटना कनेक्टर
(31)

विजेता संबंधक
(91)

आईईईई 1284 कनेक्टर
(33)

आरजे 45 कनेक्टर
(9)

समानांतर पोर्ट कनेक्टर
(44)

महिला पीसीबी कनेक्टर
(49)

पुरुष पीसीबी कनेक्टर
(28)

मिलाप पिन कनेक्टर
(36)

कार्ड कनेक्टर
(17)

SFP Connector
(16)

प्रमाणन

चीन Dongguan Fuyconn Electronics Co,.LTD प्रमाणपत्र

मैं अब ऑनलाइन चैट कर रहा हूँ

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

बड़ी छवि : 2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	FUYCONN
मॉडल संख्या:	FUYSFP2010-28

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	100
मूल्य:	$15

संपर्क करें

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

वर्णन

संपर्क सामग्री:	पीतल	लिंग:	स्त्री, स्त्री
टर्मिनल गणना:	40 पिन	बंदरगाह गणना:	2*1 दोहरी बंदरगाह
रंग:	निक सिल्वर	इन्सुलेटर सामग्री:	स्वाभाविक
संपर्क पिन सामग्री:	फॉस्फोर कांस्य	पैर प्रकार:	प्रेस पिन
प्रकाश पाइप:	हल्के पाइप के साथ	वर्तमान रेटिंग:	1AMP
सहनशील वोल्टेज:	एक मिनट के लिए 500V	इन्सुलेटर प्रतिरोध:	500 मीटर मिनट (DC500V पर)
संपर्क प्रतिरोध:	35m max मैक्स	प्रचालन तापमान:	-55°C से +105°C
आंकड़ा गति दर:	4.25gb/s तक
प्रमुखता देना:	2x1 female SFP connector with light pipe , 40 pin press-fit SFP connector , female SFP connector with press-fit

2x1 Female SFP Connectors with Light Pipe Press-Fit Stackable Multi-Port Housing Shielded Cage Connector

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while supporting up to 4.25Gb/s according to IEEE 802.3 and SFF-8472 specifications. The SFP+ variant, introduced in 2006, extends this capability to 10Gb/s while maintaining the same form factor.

Key Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Contact Type:	Small Form-factor Pluggable
Number of Positions:	40pin
Ports:	2x1 (2 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet

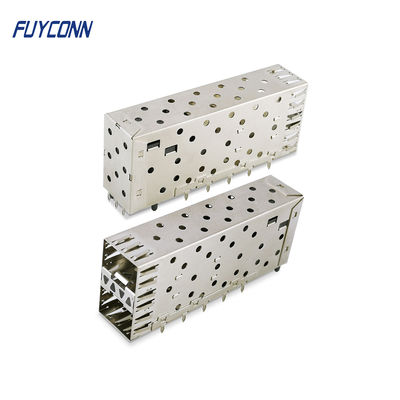

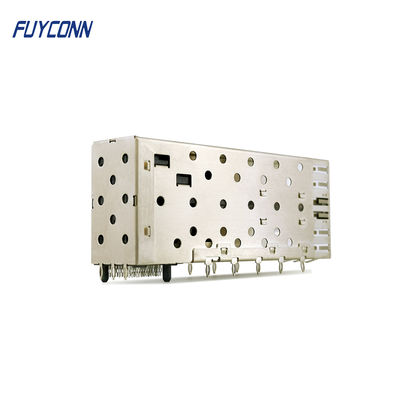

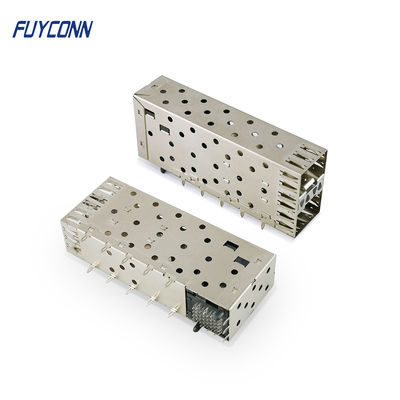

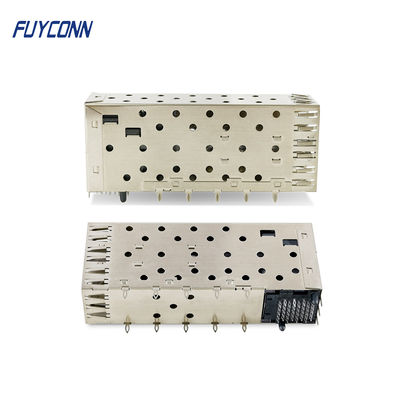

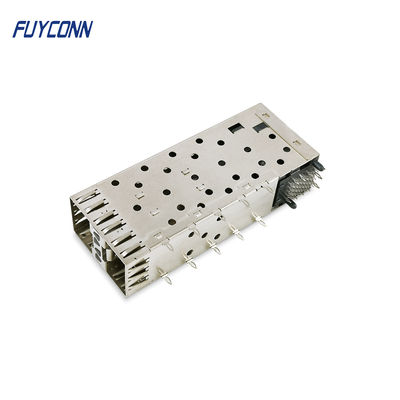

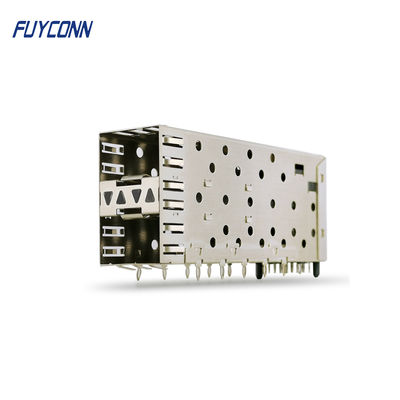

Product Images

Packaging & Shipping

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for your choice.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers 5,000 square meters with dedicated R&D, molding, plastic injection, stamping, and assembly facilities.
