उत्पाद विवरण:
|
| बंदरगाहों की संख्या: | 2*4 दोहरे बंदरगाह | पिन की संख्या: | 160 पिन |
|---|---|---|---|
| कनेक्टर लिंग: | महिला | इन्सुलेटर सामग्री: | स्वाभाविक |
| संपर्क पिन सामग्री: | फॉस्फोर कांस्य | वर्तमान रेटिंग: | 1AMP |
| सहनशील वोल्टेज: | एक मिनट के लिए 500V | इन्सुलेटर प्रतिरोध: | 500 मीटर मिनट (DC500V पर) |
| संपर्क प्रतिरोध: | 35m max मैक्स | प्रचालन तापमान: | -55°C से +105°C |
| शक्ति का स्रोत: | एसी 220V | न्यूनतम प्राप्य शक्ति: | 1000V |
| आंकड़ा गति दर: | 4.25gb/s तक | संचरण गति: | 10GB/S (SFP+) तक |
| खत्म करना: | निकेल सिल्वर | ||
| प्रमुखता देना: | 160P SFP connector stackable for data center,2x4 ports SFP connector press-fit,female SFP connector with press-fit design |
||

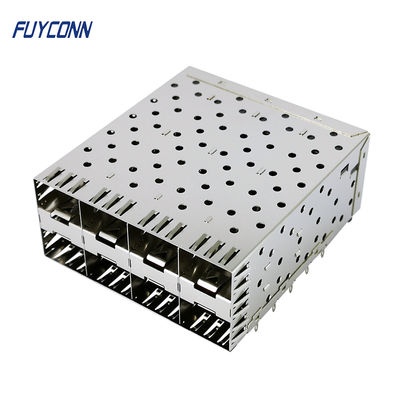

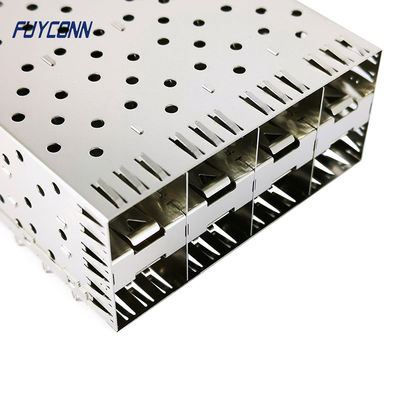

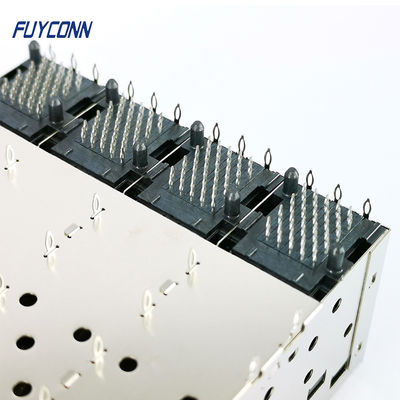

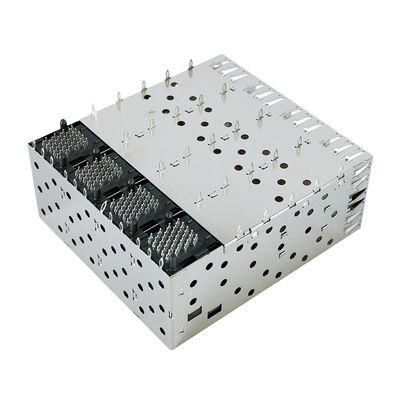

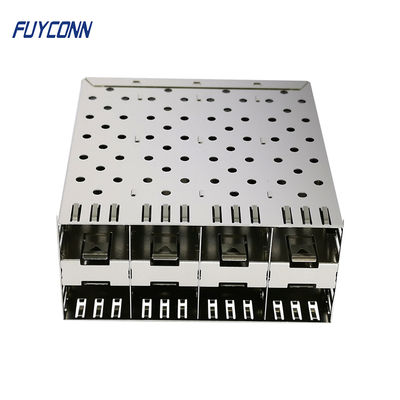

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a primary optical transceiver for data communication. Introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s, making them ideal for fiber optic and Ethernet high-speed networking systems.
Compliant with IEEE 802.3 and SFF-8472 specifications, SFP connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards. The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size.
| Product Name | SFP Connector |
| Product Line | Small Form-factor Pluggable |
| Connector Gender | Female Centronic Connector |
| Number of Positions | 160pin |
| Ports | 2×4 (8 Ports) |
| Contact Material | Phosphor Bronze |
| Finish | Nickel Silver |
| Insulation Material | PBT |
| Current Rating | 1AMP |
| Withstanding Voltage | 500V for one minute |
| Insulator Resistance | 500MΩ min (at DC500V) |
| Contact Resistance | 35MΩ Max |
| Operation Temperature | -55°C to +105°C |
Established in 2004, we specialize in IT and communication connectors including Centronic IDC, PCB DIP, solder type, V.35, D-SUB, SCSI, and RJ series connectors. Our UL- and SGS-certified products comply with RoHS Directive and maintain a defect rate below 0.5%.
Our 5,000 sqm ISO 9001:2008 and ISO 14001:2004 certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
