उत्पाद विवरण:
|
| बंदरगाहों की संख्या: | 2*1 दोहरी बंदरगाह | टर्मिनलों की संख्या: | 40 पिन |
|---|---|---|---|
| कनेक्टर लिंग: | महिला | रंग: | निक सिल्वर |
| इन्सुलेटर सामग्री: | स्वाभाविक | संपर्क पिन सामग्री: | फॉस्फोर कांस्य |
| पैर प्रकार: | सोल्डरलेस पिन | लाइटपाइप: | हाँ |
| वर्तमान रेटिंग: | 1AMP | सहनशील वोल्टेज: | एक मिनट के लिए 500V |
| इन्सुलेटर प्रतिरोध: | 500 मीटर मिनट (DC500V पर) | संपर्क प्रतिरोध: | 35m max मैक्स |
| प्रचालन तापमान: | -55°C से +105°C | आंकड़ा गति दर: | 10GB/s तक |
| माउन्टिंग का प्रकार: | पीसीबी | ||
| प्रमुखता देना: | 2 port SFP+ connector PCB mount,40 pin female SFP+ connector,SFP+ connector with light indicator |
||

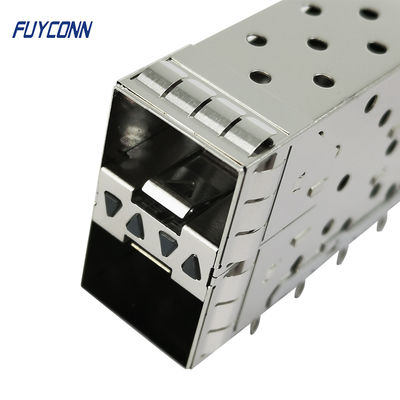

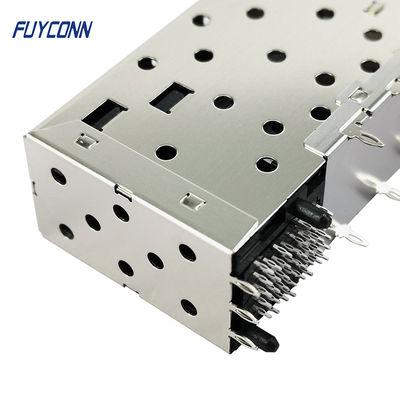

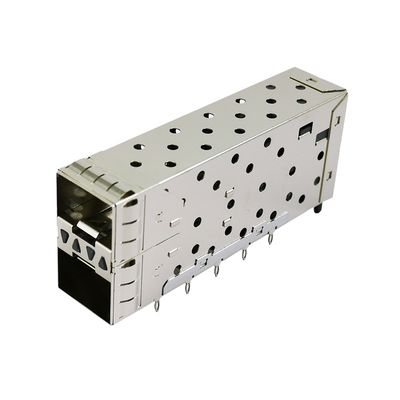

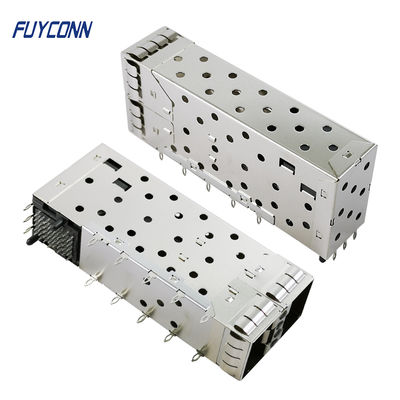

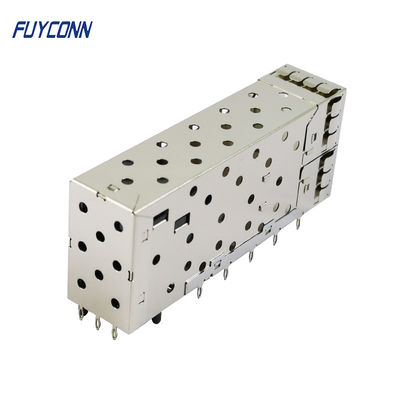

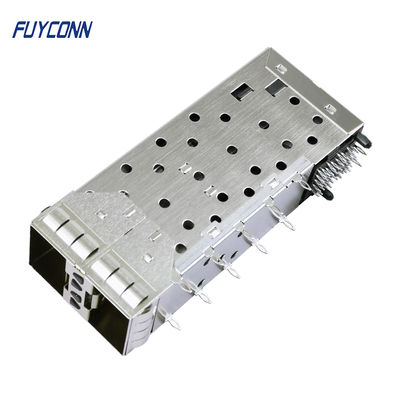

The SFP+ (Small Form-factor Pluggable Plus) connector is a high-performance optical transceiver designed for data communication applications. This 2x1 2-port configuration features press-fit termination and includes a lightpipe for status indication.
| Feature | Specification |
|---|---|
| Product Name | SFP Connector |
| Product Line | Small Form-factor Pluggable |
| Connector Gender | Female Centronic Connector |
| Contact Type | Small Form-factor Pluggable |
| Number of Positions | 40pin |
| Ports | 2x1 2 Ports |
| Contact Material | Phosphor Bronze |
| Finish | Nickel Silver |
| Insulation Material | PBT |
| Lightpipe | Yes |
| Parameter | Value |
|---|---|
| Current Rating | 1AMP |
| Withstanding Voltage | 500V for one minute |
| Insulator Resistance | 500MΩ min (at DC500V) |
| Contact Resistance | 35MΩ Max |
| Operation Temperature | -55°C to +105°C |
Our products are securely packaged using:
Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
