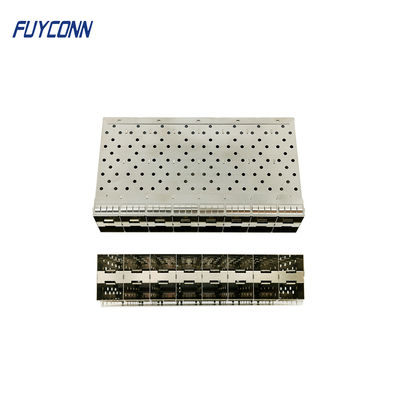

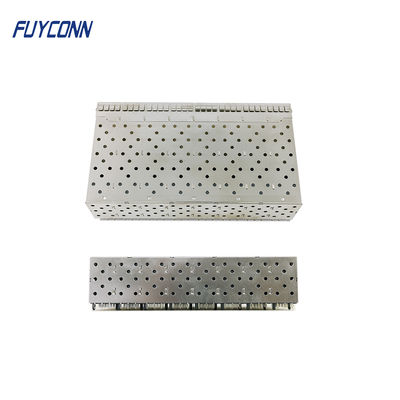

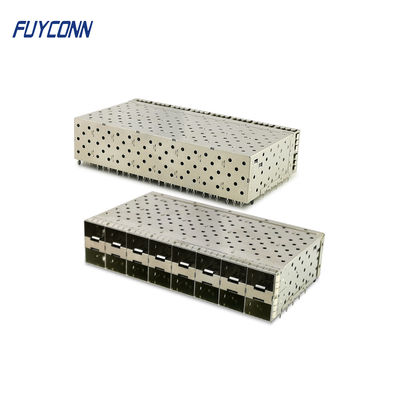

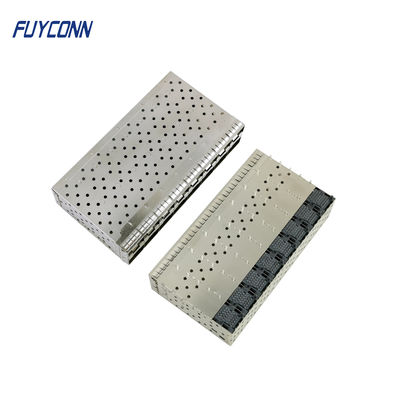

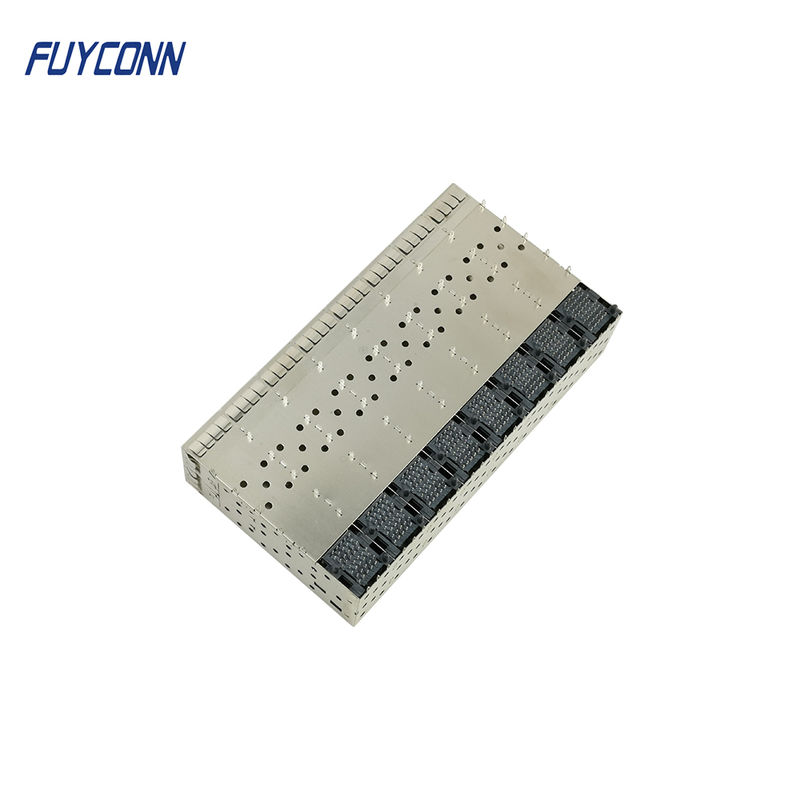

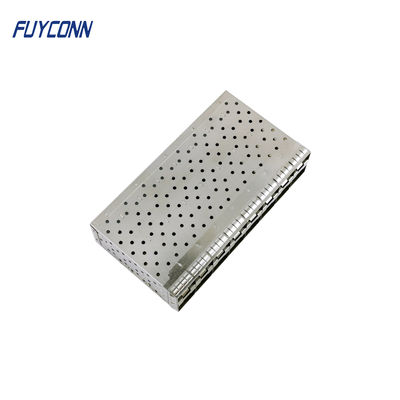

2x8 W/ EMI Gasket Integrate SFP+ Connector, SFP+ Series Connector 2x8 16 Port 320 Position Press Pin SFP Cage Assembly
SFP+ Series Connector Overview
The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a major optical transceiver for data communication. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s based on IEEE 802.3 and SFF-8472 specifications. They support Gigabit Ethernet, Fibre Channel, SONET, and other standards.
The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s (IEEE802.3ae, SFF-8431/8432). While similar in size to SFP, SFP+ supports higher-speed standards including 10GbE, Fibre Channel, SONET, and OTN. Both SFP and SFP+ are available in copper and optical variants.
Product Features
| Product Name: |
SFP Connector |
| Product Line: |
Small Form-factor Pluggable |
| Connector Gender: |
Female Centronic Connector |
| Contact Type: |
Small Form-factor Pluggable |
| Number of Position: |
320pin |
| Ports: |
2×8 (16 Ports) |
| Contact Material: |
Phosphor Bronze |
| Finish: |
Nickel Silver |
| Insulation Material: |
PBT |
| Lightpipe: |
Without |
Electrical Specifications
| Current Rating: |
1AMP |
| Withstanding Voltage: |
500V for one minute |
| Insulator Resistance: |
500MΩ min (at DC500V) |
| Contact Resistance: |
35MΩ Max |
| Operation Temperature: |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Networking
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers
Packaging & Shipping
Strong packaging options include:
- Vacuum Tray
- PE Bag
- Strong bags/boxes/cartons
- PE Bag + Strips
Company Profile
Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models available.
Our products are UL- and SGS-certified and RoHS compliant. With a defect rate below 0.5%, 99% of customers repeat orders. Our ISO 9001:2008 and ISO 14001:2004 certified 5,000 square meter facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
Why Choose Us
- 16 years Centronic Connector production experience
- R&D engineers with over 20 years' experience
- Thousands of molds available
- UL Certified, ROHS compliant
- Factory-direct pricing
- Free samples within 2 days
- Short lead time (1 week for standard products)
- No MOQ requirements
- Custom logo options available
- Full production control from plastic injection to assembly
- Multiple payment methods accepted
