320pin 2x8 Ports SFP Connector Female Press-Fit with Light

Name: 320pin 2x8 Ports SFP Connector Female Press-Fit with Light
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: Fuysfp2054-49
Price: 20 USD
Availability: InStock

सभी उत्पाद

Centronics कनेक्टर
(204)

दीन 41612 कनेक्टर
(170)

SCSI कनेक्टर
(67)

50 पिन Centronics कनेक्टर
(57)

36 पिन Centronics कनेक्टर
(20)

64 पिन क्रॉनिक कनेक्टर
(28)

V.35 राउटर कनेक्टर
(11)

डी-उप कनेक्टर
(66)

आईडीसी केबल विधानसभा
(14)

IDC समेटना कनेक्टर
(31)

विजेता संबंधक
(91)

आईईईई 1284 कनेक्टर
(33)

आरजे 45 कनेक्टर
(9)

समानांतर पोर्ट कनेक्टर
(44)

महिला पीसीबी कनेक्टर
(49)

पुरुष पीसीबी कनेक्टर
(28)

मिलाप पिन कनेक्टर
(36)

कार्ड कनेक्टर
(17)

एसएफपी कनेक्टर
(16)

प्रमाणन

चीन Dongguan Fuyconn Electronics Co,.LTD प्रमाणपत्र

मैं अब ऑनलाइन चैट कर रहा हूँ

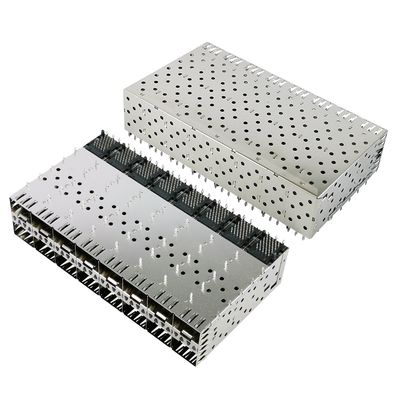

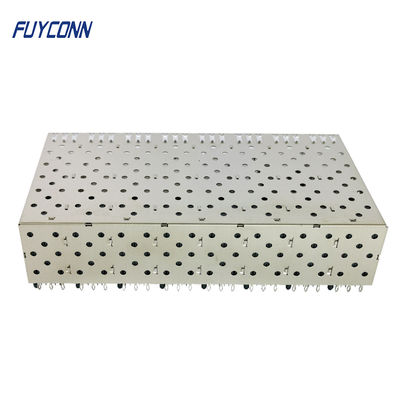

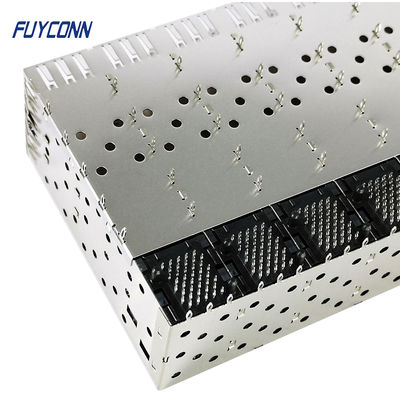

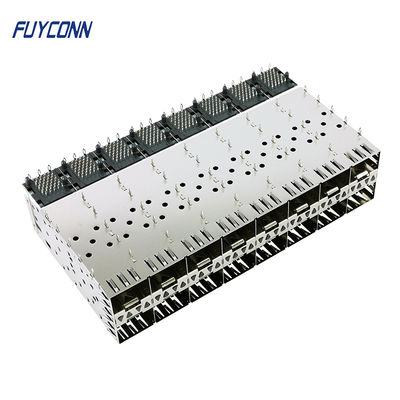

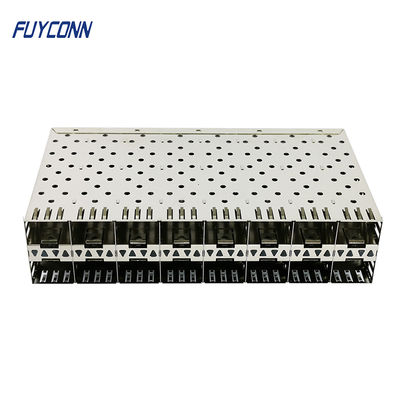

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

बड़ी छवि : 320pin 2x8 Ports SFP Connector Female Press-Fit with Light

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	FUYCONN
मॉडल संख्या:	Fuysfp2054-49

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	100
मूल्य:	$20

संपर्क करें

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

वर्णन

पिन की संख्या:	320pin	बंदरगाहों की संख्या:	2*8 दोहरे बंदरगाह
कनेक्टर लिंग:	महिला	इन्सुलेटर सामग्री:	स्वाभाविक
संपर्क पिन सामग्री:	फॉस्फोर कांस्य	माउन्टिंग का प्रकार:	जबरदस्ती घुसाना
लाइटपाइप:	हाँ	वर्तमान रेटिंग:	1AMP
सहनशील वोल्टेज:	एक मिनट के लिए 500V	इन्सुलेटर प्रतिरोध:	500 मीटर मिनट (DC500V पर)
संपर्क प्रतिरोध:	35m max मैक्स	प्रचालन तापमान:	-55°C से +105°C
आंकड़ा गति दर:	10GB/S (SFP+) तक	खत्म करना:	निकेल सिल्वर
stackable:	हाँ
प्रमुखता देना:	320pin SFP connector female press-fit , 2x8 ports SFP connector with light , press-fit SFP connector with warranty

320pin Press-Fit Stackable 2x8 Ports SFP Connector with Light

SFP Cage Assembly 2-by-8 Multi-Port Female Connector

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s. These connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards.

The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size. Both SFP and SFP+ connectors are available in copper and optical variants, making them versatile solutions for high-speed networking applications.

Product Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Number of Positions:	320pin
Ports:	2×8 (16 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch systems
Data/Communications infrastructure
High-end servers
Telecommunications hardware
Fibre Channel and Gigabit Ethernet systems

Packaging & Shipping

Our products are securely packaged using:

Vacuum trays for protection
PE bags for moisture resistance
Sturdy boxes/cartons for shipping
PE bags with strips for added security

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our UL- and SGS-certified products comply with RoHS directives and maintain a defect rate below 0.5%. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
