2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount

Name: 2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: SFP2009-28
Price: 15 USD
Availability: InStock

सभी उत्पाद

Centronics कनेक्टर
(198)

दीन 41612 कनेक्टर
(170)

SCSI कनेक्टर
(67)

50 पिन Centronics कनेक्टर
(57)

36 पिन Centronics कनेक्टर
(20)

64 पिन क्रॉनिक कनेक्टर
(28)

V.35 राउटर कनेक्टर
(11)

डी-उप कनेक्टर
(66)

आईडीसी केबल विधानसभा
(14)

IDC समेटना कनेक्टर
(31)

विजेता संबंधक
(91)

आईईईई 1284 कनेक्टर
(33)

आरजे 45 कनेक्टर
(9)

समानांतर पोर्ट कनेक्टर
(44)

महिला पीसीबी कनेक्टर
(49)

पुरुष पीसीबी कनेक्टर
(28)

मिलाप पिन कनेक्टर
(36)

कार्ड कनेक्टर
(17)

एसएफपी कनेक्टर
(16)

प्रमाणन

चीन Dongguan Fuyconn Electronics Co,.LTD प्रमाणपत्र

मैं अब ऑनलाइन चैट कर रहा हूँ

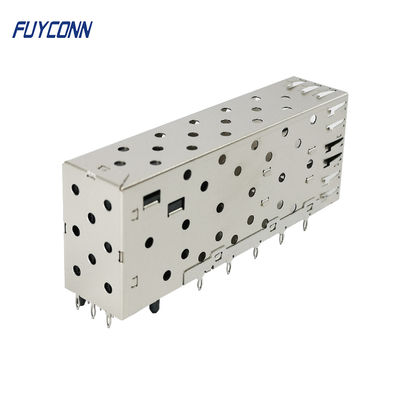

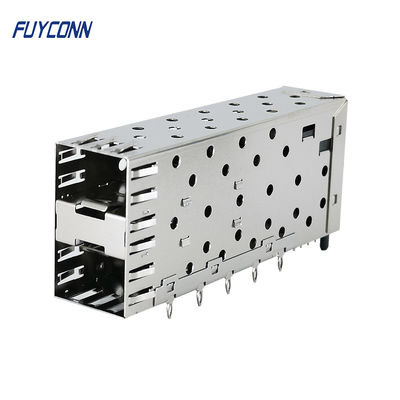

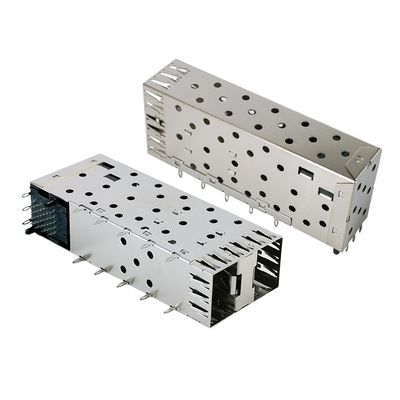

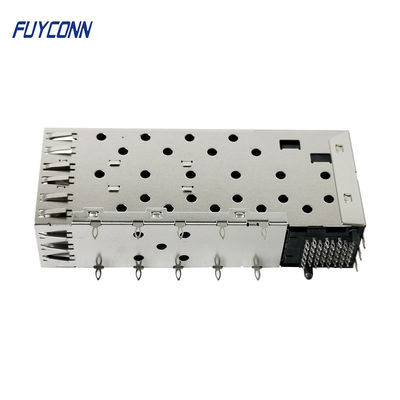

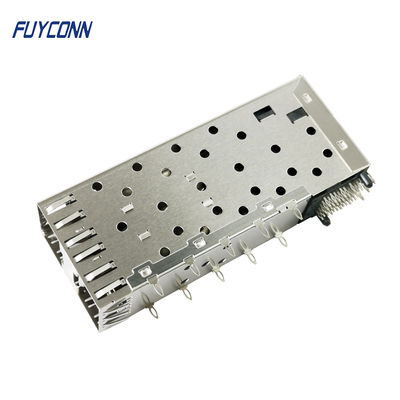

2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount

बड़ी छवि : 2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	FUYCONN
मॉडल संख्या:	SFP2009-28

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	100
मूल्य:	$15

संपर्क करें

2x1 Ports SFP Female Connector 40 Pin Press-Fit PCB Mount

वर्णन

प्रकार:	एसएफपी, एसएफपी फाइबर ऑप्टिक कनेक्टर	संबंध:	प्रेस पिन
टर्मिनल की संख्या:	40 पिन	बंदरगाहों की संख्या:	2*1 दोहरी बंदरगाह
लिंग:	महिला	रंग:	निक सिल्वर
इन्सुलेटर सामग्री:	स्वाभाविक	संपर्क पिन सामग्री:	फॉस्फोर कांस्य
फेट्स:	प्रेस पिन	लाइटपाइप:	नहीं
वर्तमान रेटिंग:	1AMP	सहनशील वोल्टेज:	एक मिनट के लिए 500V
इन्सुलेटर प्रतिरोध:	500 मीटर मिनट (DC500V पर)	संपर्क प्रतिरोध:	35m max मैक्स
प्रचालन तापमान:	-55°C से +105°C
प्रमुखता देना:	SFP female connector 40 pin , press-fit SFP connector PCB mount , 2x1 SFP connector press-fit

2x1 Ports Housing Shielded SFP Cage With Connector Press-Fit Stackable 2-by-1 Multi-Port Female SFP Connector W/o Light Pipe

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a primary optical transceiver for data communication. Introduced in early 2000, it replaced the gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Compliant with IEEE 802.3 and SFF-8472 specifications, SFP connectors handle up to 4.25Gb/s with greater port density than GBIC, earning the nickname "mini GBIC."

The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s (IEEE802.3ae, SFF-8431/8432). Both SFP and SFP+ support Gigabit Ethernet, Fibre Channel, SONET, OTN, and other standards, with copper and optical variants available.

Product Features

Feature	Specification
Product Name	SFP Connector
Product Line	Small Form-factor Pluggable
Connector Gender	Female Centronic Connector
Contact Type	Small Form-factor Pluggable
Number of Position	40pin
Ports	2*1 2 Ports
Contact Material	Phosphore Bronze
Finish	Nickel Silver
Insulation Material	PBT
Lightpipe	No

Electrical Specifications

Specification	Value
Current Rating	1AMP
Withstanding Voltage	500v for one minute
Insulator Resistance	500MΩ min (at DC500V)
Contact Resistance	35MΩ Max
Operation Temperature	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Networking
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet
Servers

Packing & Shipping

Strong Packaging Options:

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

Company Profile

Dongguan Fuyconn Electronics Co., Ltd specializes in IT and communication connectors since 2004. Our product range includes 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series, and RJ series with over 1,000 models available.

Our UL- and SGS-certified products are RoHS compliant with a defect rate below 0.5%. Our ISO 9001:2008 and ISO 14001:2004 certified 5,000 sqm factory features R&D, molding, plastic injection, stamping, and assembly production lines.
